These spreadsheets were originally designed to aid the DS-015 experiment, which has lost relevance by now, but the spreadsheets are still quite useful on their own. They allow one to easily estimate the CAN bus utilization with a given set of messages and nodes in the network. There are two versions: for Classic CAN and for CAN FD:
Please do not request edit access. Create a private copy and edit that instead.
Beware that the spreadsheets do not provide any latency bound information. That is also possible to implement with a few additional inputs from the user, but requires a bit more tinkering, which hasn’t been done yet.

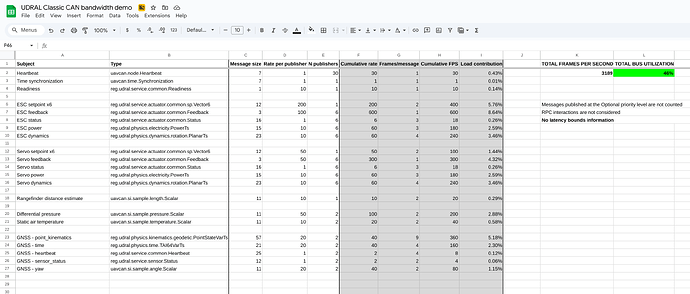

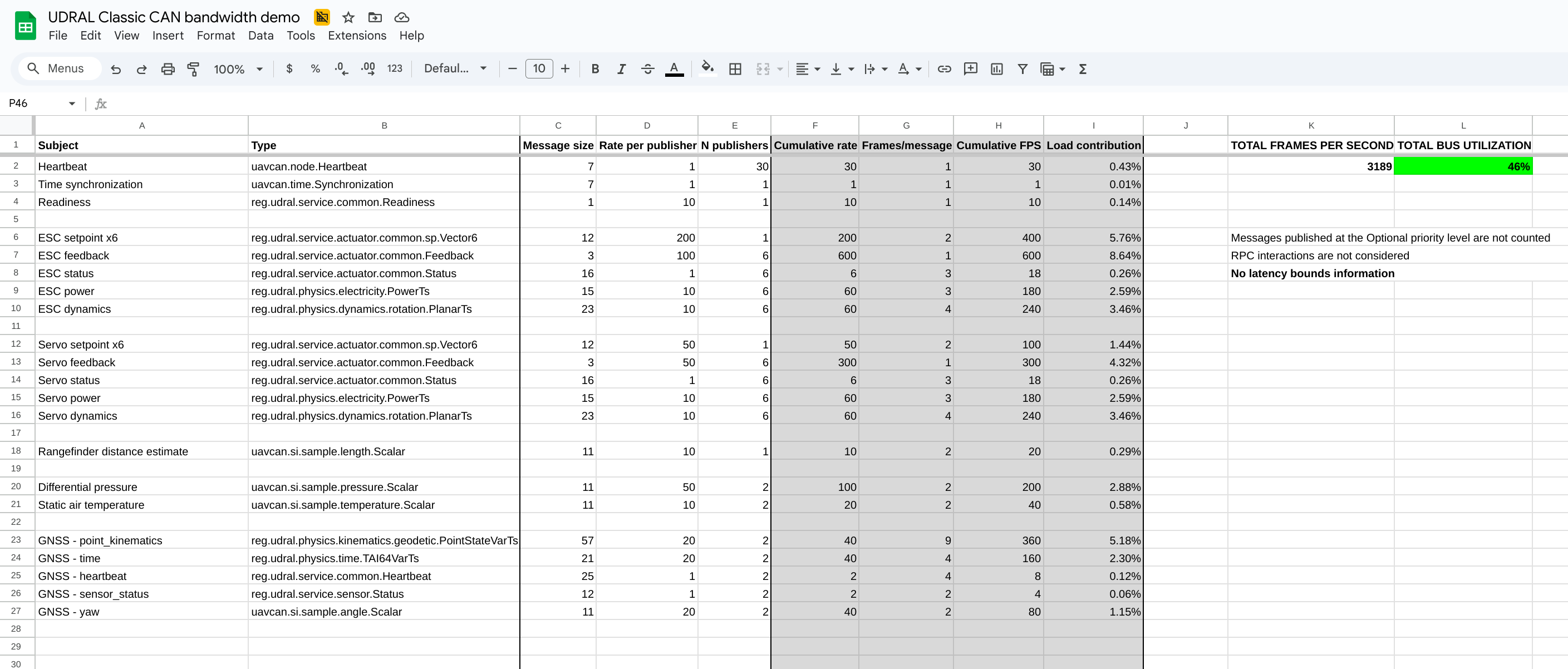

Usage example for the UDRAL message set (now obsolete):
